Male Angle

Linknewtech

Male Angle

$1.77

(0) Write a Review

SKU:: MA
Weight:: 0.20 LBS
Shipping:: Calculated at Checkout

Current Stock:

Product Description

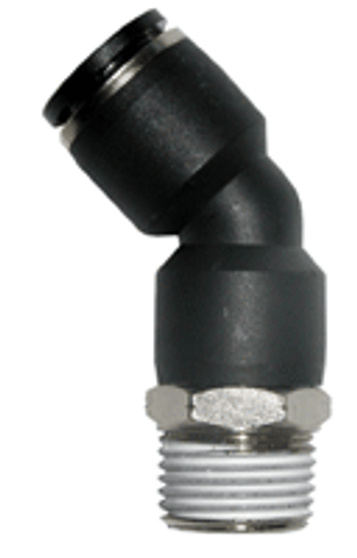

MALE ANGLE

Model MA Dimensions:
Dimensions for Reference Use Only: Fraction in Inch, Unit in mm, U.S.O.

MODEL	ΦD	NPT	A	B	E	H	H
MA 5/32 10-32	5/32	10-32UNF	3.8	20.7	16.2	11.1	7/16
MA 5/32-N1/8		NPT1/8	7.5	22.7		11.1	7/16
MA 5/32 N1/4		NPT1/4	10.5	26.7		14.3	9/16
MA 3/16 10-32	3/16	10-32UNF	3.8	20.7	16.5	11.1	7/16
MA 3/16 N1/8		NPT1/8	7.5	23.2		11.1	7/16
MA 3/16 N1/4		NPT1/4	10.5	26.7		14.3	9/16
MA 3/16 N3/8		NPT3/8	11.0	27.7		17.4	11/16
MA 1/4 10-32	1/4	10-32UNF	3.8	23.1	17.7	12.7	1/2
MA 1/4 N1/8		NPT1/8	7.5	24.4		12.7	1/2
MA 1/4 N1/4		NPT1/4	10.5	27.9		14.3	9/16
MA 1/4 N3/8		NPT3/8	11.0	28.9		17.4	11/16
MA 5/16 N1/8	5/16	NPT1/8	7.5	27.6	20.9	14.3	9/16
MA 5/16 N1/4		NPT1/4	10.5	30.6		14.3
MA 5/16 N3/8		NPT3/8	11.0	31.6		17.4	11/16
MA 3/8 N1/8	3/8	NPT1/8	7.5	30.2	22.2
MA 3/8 N1/4		NPT1/4	10.5	33.2
MA 3/8 N3/8		NPT3/8	11.0	33.7
MA 3/8 N1/2		NPT1/2	14.0	37.2		22.2	7/8
MA 1/2 N1/2	1/2	NPT1/4	10.5	36.2	26.3
MA 1/2 N3/8		NPT3/8	11.0	36.7
MA 1/2N1/2		NPT1/2	14.0	39.7

Link to Push-In Air Fitting Installation Procedure and Specifications
